Mantall Heavy Industry Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm hz170je / hz170j 17m hluav taws xob articulating boom nqa hauv Suav teb. Peb sov siab txais tos koj mus yuav luv nqi hz170je / hz170j 17m hluav taws xob articulating boom nqa ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Yog tias koj muaj lus nug txog pricelist thiab hais, thov koj xav email rau peb.
Khoom Taw Qhia

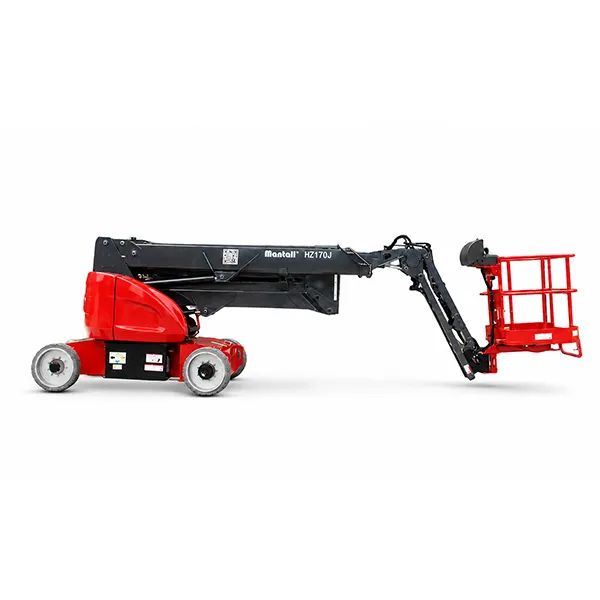

Mantall HZ170JE / HZ170J hluav taws xob articulated boom nqa nta xoom emissions, tsis tshua muaj suab nrov, thiab hloov tau yooj yim rau kev siv sab hauv tsev thiab sab nraum zoov. Nrog kev tsim qauv tsim thiab du maneuverability, nws muab kev ua haujlwm zoo, txhim khu kev qha, thiab ua haujlwm zoo ib puag ncig- ntawm - qhov siab ua haujlwm.
| Qauv | HZ170JE | HZ170J |
| Dimension | ||
| Max. Ua haujlwm siab | 17.11m | 17m |
| Max. Platform Qhov siab | 15.11m | 15m |
| Max. Kev nthuav qhia | 8.37m | 9.12m |
| Max. Up thiab Over Clearance | 7.65m | 7.2m |
| Ib Length (stowed) | 6.78m | 6.99m |
| B dav (kwv yees) | 2.3m | 1.77m |
| C Qhov siab (stowed) | 2.25m | 2.17m |
| D Wheelbase | 2.32m | 2m |
| Av Clearance | 0.33m | 0.21m |
| Platform Loj ((L × W × H) | 1.8m×0.76m×1.1m | 1.5m×0.76m×1.1m |
| Kev ua tau zoo | ||
| Lift Capacity | 300 kg | 230kg ua |
| Turntable tig | 360℃tsis- txuas ntxiv | 360℃tsis- txuas ntxiv |
| Platform tig | 180 degree | 180 degree |
| Tsav ceev (Stowed) | 5 km / h | 5 km / h |
| Tsav ceev (Raised) | 1 km / h | 1 km / h |
| Gradeability | 0.35 | 0.35 |
| Turing Radius (hauv) | 1.1m | 1.1m |
| Turing Radius (Sab nraum) | 3.5m | 3.5m |
| Turntable Tailswing | 0 | 0 |
| Max. Tilt Angle (Pem hauv ntej mus rau Back / Sab rau Sab) | 5℃/ 3 degree | 5℃/ 3 degree |
| Tsav log tooj x Steering log tooj | 2×2 | 2×2 |
| Tyre Specification / Hom | 600 * 190 (tsheb log) | 240-55D17.5 ua npuas ncauj puv log |
| Hwj chim | ||
| Roj teeb Specifications | DC48/320Ah | DC48/320Ah |
| Tswj Voltage | DC 12 V | DC 12 V |
| Hydraulic Tank Muaj peev xwm | 40L | 35L |
| Qhov hnyav | ||
| Qhov hnyav tag nrho | 7500kg ib | 6 800kg |
